Configuration

License Activation

Your license key ties your Cartographer installation to your specific Dataverse environment and unlocks the features for your plan tier.

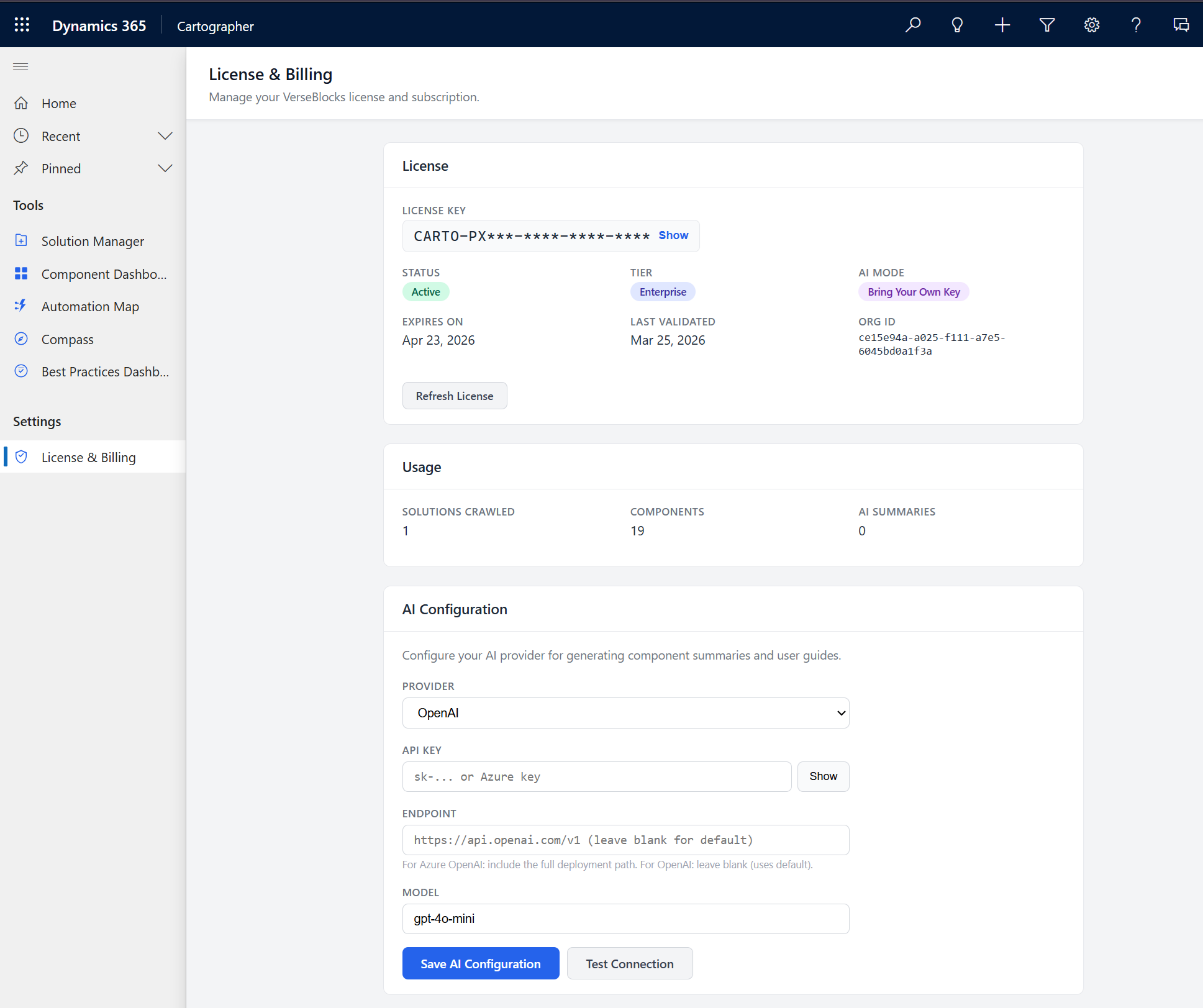

1. 1Open the Cartographer app and navigate to License & Billing in the sidebar
2. 2Enter your license key in the input field (format: CARTO-XXXXX-XXXXX-XXXXX-XXXXX)
3. 3Click Activate — Cartographer validates the key against our licensing server
4. 4On success, the page displays your plan tier, component limit, and expiration date

AI Mode

AI Summaries are one of Cartographer's most powerful features. They use large language models to read component metadata and produce plain-English descriptions of what each component does. You need to choose an AI mode before generating summaries.

BYOK Setup: OpenAI

To use your own OpenAI API key with Cartographer:

1. 1

   Get an OpenAI API key

   Go to platform.openai.com/api-keys and create a new secret key. Copy it immediately — OpenAI only shows it once.

2. 2

   Ensure you have access to a supported model

   Cartographer works with GPT-4o and GPT-4o-mini. GPT-4o-mini is recommended for cost efficiency. Verify your OpenAI account has access to one of these models.

3. 3

   Enter the key in Cartographer

   Open Cartographer, go to Configuration, select BYOK as the AI mode, and paste your API key in the OpenAI API Key field.

4. 4

   Set the endpoint URL

   For standard OpenAI, use the default endpoint:https://api.openai.com/v1/chat/completions

5. 5

   Select your model

   Choose between gpt-4o (best quality, higher cost) and gpt-4o-mini (good quality, lower cost). For most environments, gpt-4o-mini is sufficient.

6. 6

   Test the connection

   Click the Test Connection button to verify Cartographer can reach your OpenAI endpoint successfully.

BYOK Setup: Azure OpenAI

If your organization uses Azure OpenAI Service instead of OpenAI directly, you can configure Cartographer to use your Azure endpoint.

1. 1

   Deploy a model in Azure OpenAI Studio

   Create a deployment of gpt-4o or gpt-4o-mini in your Azure OpenAI resource. Note the deployment name.

2. 2

   Get your API key and endpoint

   In the Azure Portal, go to your Azure OpenAI resource and copy the Key and Endpoint from the Keys and Endpoint section.

3. 3

   Enter the Azure endpoint in Cartographer

   The endpoint format for Azure OpenAI is different from standard OpenAI:https://YOUR_RESOURCE.openai.azure.com/openai/deployments/YOUR_DEPLOYMENT/chat/completions?api-version=2024-02-01Replace YOUR_RESOURCE with your Azure resource name and YOUR_DEPLOYMENT with your model deployment name.

4. 4

   Enter your Azure API key

   Paste the Azure OpenAI key (not a standard OpenAI key) into the API Key field.

5. 5

   Test the connection

   Click Test Connection to verify the configuration works.

Hosted AI Setup

Hosted AI is the simplest option — no API key management required. We handle the AI infrastructure for you.

How it works

1. Cartographer sends component metadata to the VerseBlocks API over HTTPS
2. Our API proxies the request to OpenAI using our own API key
3. The AI-generated summary is returned directly to your environment
4. We do not store your component data — it is processed in transit and discarded

Enabling Hosted AI

1. Ensure you have a Professional or Enterprise plan
2. Subscribe to the Hosted AI add-on ($149/mo) from your billing portal
3. In Cartographer Configuration, select Hosted AI as the AI mode
4. No further configuration needed — summaries will use our hosted service

Pricing

The Hosted AI add-on costs $149/month and includes unlimited AI summary generation. There are no per-token charges — the flat fee covers all usage.
