Component Dashboard

A searchable, filterable grid of every component discovered across all your crawled solutions. It shows what the last crawl stored, so the grid is empty until you crawl a solution in Solution Manager. A change in your environment appears after the next crawl. Access it from the Cartographer app sidebar → Component Dashboard.

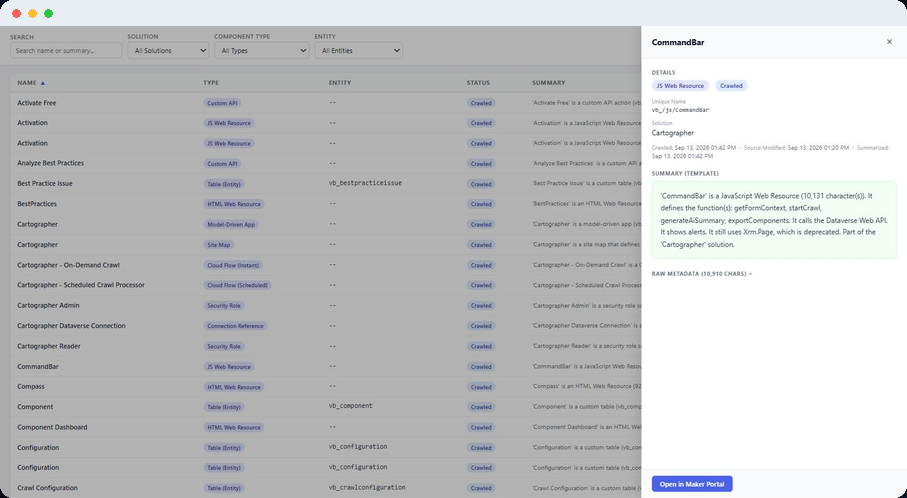

Component Dashboard with the filter bar above the component grid and the detail panel open on a JavaScript web resource

Search and Filters

Narrow down the component list using any combination of the following filters:

  • Search — Searches component name and summary text
  • Solution filter — Filter by crawl configuration (solution)
  • Component Type filter — Filter by type — Plugin Assembly, Custom API, Plugin Step, Cloud Flow, Business Rule, Table, Form, View, Web Resource, and more
  • Entity filter — Filter by the Dataverse table the component is bound to
  • Reset — Clears all active filters at once
The Search box is a plain text filter on component names and summaries. To ask a question in plain English, use Search in Solution Manager, described on the Semantic Search page.

Component Grid

The grid displays all matched components with the following columns:

Name— The display name of the component
Type— Badge showing the component type
Entity— The Dataverse table the component is associated with
Status— Crawled or Removed
Summary— Truncated preview of the generated summary
Last Crawled— When a crawl last created, changed or marked the component removed. Crawls skip unchanged components, so their date does not move
Click any column header except Summary to sort the grid, and click it again to reverse the order. The grid shows 50 rows per page, with page numbers and the total component count.
The dashboard has no export, download or print option. To export a solution's components as CSV, JSON, XLSX or DOCX, use Export in Solution Manager.

Detail Panel

Click any row to open a slide-out detail panel on the right side of the screen. The panel shows the full component information:

  • Type and status badges — Visual indicators for component type and current status, plus a Managed badge when the component is managed
  • Table — The entity logical name the component is bound to
  • Unique name — The component's unique identifier in the solution
  • Solution name — Which crawled solution this component belongs to
  • Tracked in — Appears when the same component is tracked under more than one of your added solutions, and lists them
  • Connectors used — For cloud flows, lists the connectors referenced
  • Trigger attributes — For plugins, shows the attributes that trigger execution
  • Timestamps — When crawled, when source was modified, and when the summary was last generated

Summary

Displayed in a green card. Shows the component's full summary, generated automatically at crawl time from its metadata.

Raw Metadata

A collapsible section showing the raw metadata (JSON, XML, or JS source code) captured during crawl.

The detail panel also includes an action button:

  • Open in Maker Portal — Opens the owning solution's list for that component type in the Maker Portal, in a new tab

Status Meanings

A crawl sets one of two statuses on each component:

Crawled— The crawl found the component and stored its metadata and template summary
Removed— Component was in a previous crawl but no longer exists in the solution
When a component disappears from its solution, the next crawl marks it Removed and keeps it in the grid. Removed components are left out of reports and exports. The dashboard keeps no change history.
